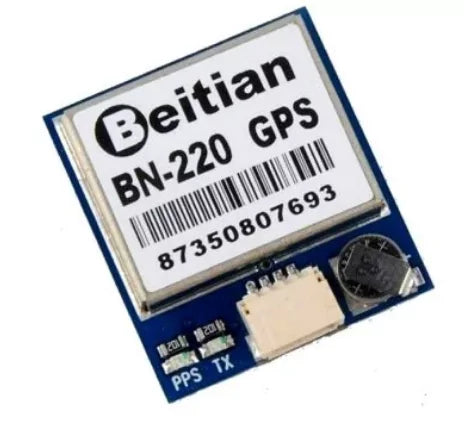

Beitian Dual BN-220 GPS GLONASS Antenna Module TTL Level RC Drone

Beitian Dual BN-220 GPS GLONASS Antenna Module TTL Level RC Drone. This BN-220 GPS Module can show your speed. When you use it for Raspberry Pi, there is no driver needed. The data output when the TX LED flashing in blue; PPS LED not bright when GPS not fixed, flashing in red when fixed

Module Pin
1. GND, grounded
2. TX, data module output
3. RX, data entry module
4. VCC, power supply module, 2.8V-6.0V

1,409.29 excl GST

Only 1 left in stock

Total:

excl GST

Package Includes:

1 x Beitian Dual BN-220 GPS GLONASS Antenna Module TTL Level RC Drone

Specifications:



Electrical CharacteristicsChipset: 8030-KT
Receiving Format: GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Frequency: GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels: 72 Searching Channel
SensitivityTracking: -167dBm
Reacquisition: -160dBm
Cold start: -148dBm
Hot start: -156dBm
AccuracyPosition Horizontal: 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity: 0.1m/sec 95% (SA off)
Timing: 1us synchronized to GPS time
Acquisition TimeCold start: 26s
Warm start: 25s
Hot start: 1s
Data and Update RateSupport Rate: 4800bps to 921600bps,Default 9600bps
Data Level: TTL or RS-232,Default TTL level
Data Protocol: NMEA-0183 or UBX, Default NMEA-0183
Single GNSS: 1Hz-18Hz
Concurrent GNSS: 1Hz-10Hz,Default 1Hz
Operational LimitsAltitude: 50,000m Max
Velocity: 515m/s Max
Acceleration: Less than 4g
Power consumptionVCC: DC Voltage 3.0V-5.5V,Typical: 5.0V
Current: Capture 50mA/5.0V
Operating temp: -40 °C ~ +85°C
Storage Temp: -40°C ~ +105°C
Connector1.00mm spacing between the 4pins patch seat
IndicatorTX LED: blue. The data output, TX LED flashing
PPS LED: red.PPS LED not bright when GPS not fixed, flashing when fixed
WiringGND,TX output,RX input,VCC(3.0v-5.5v)
Dimensions (mm)22 x 20 x 6
Weight (gm)5.3
