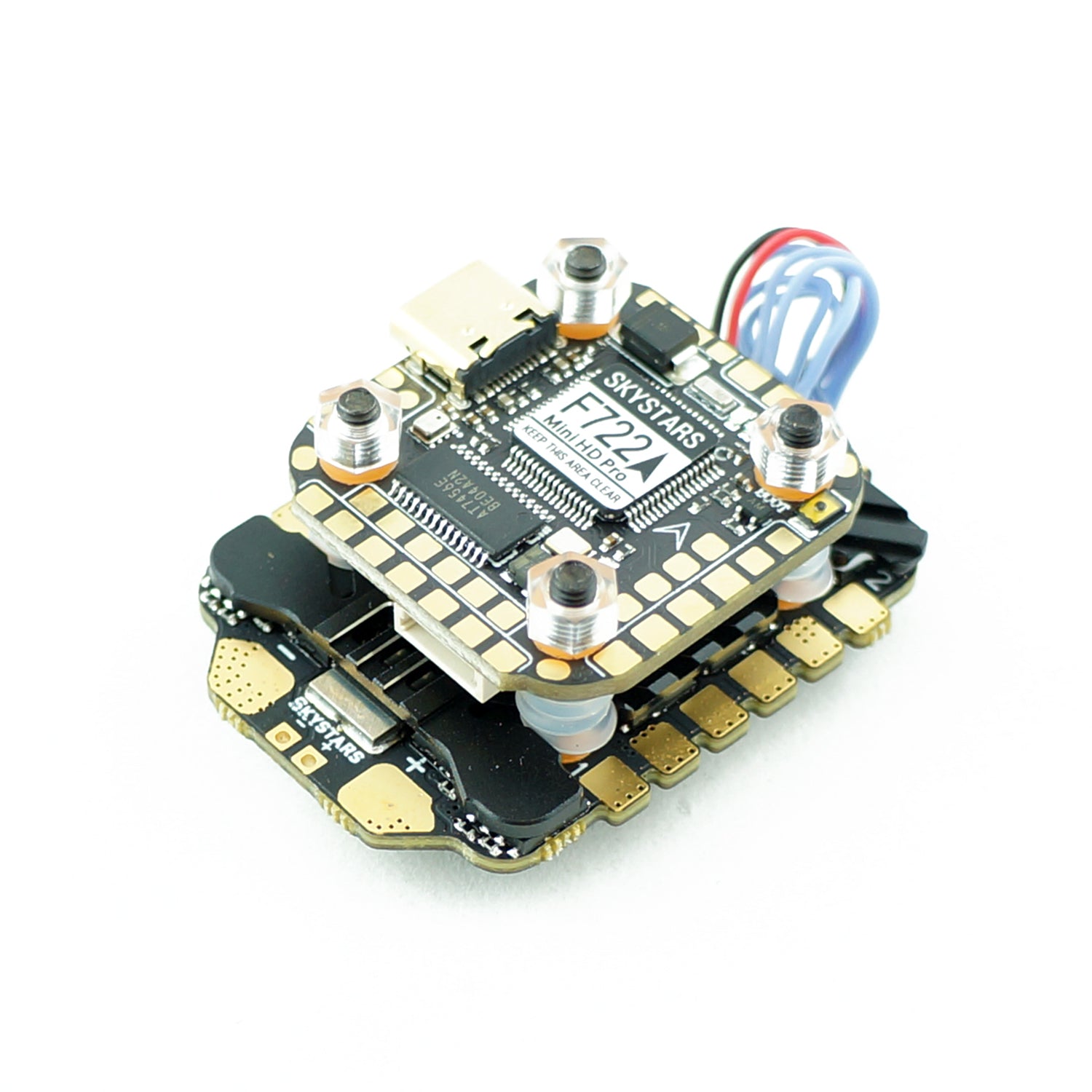

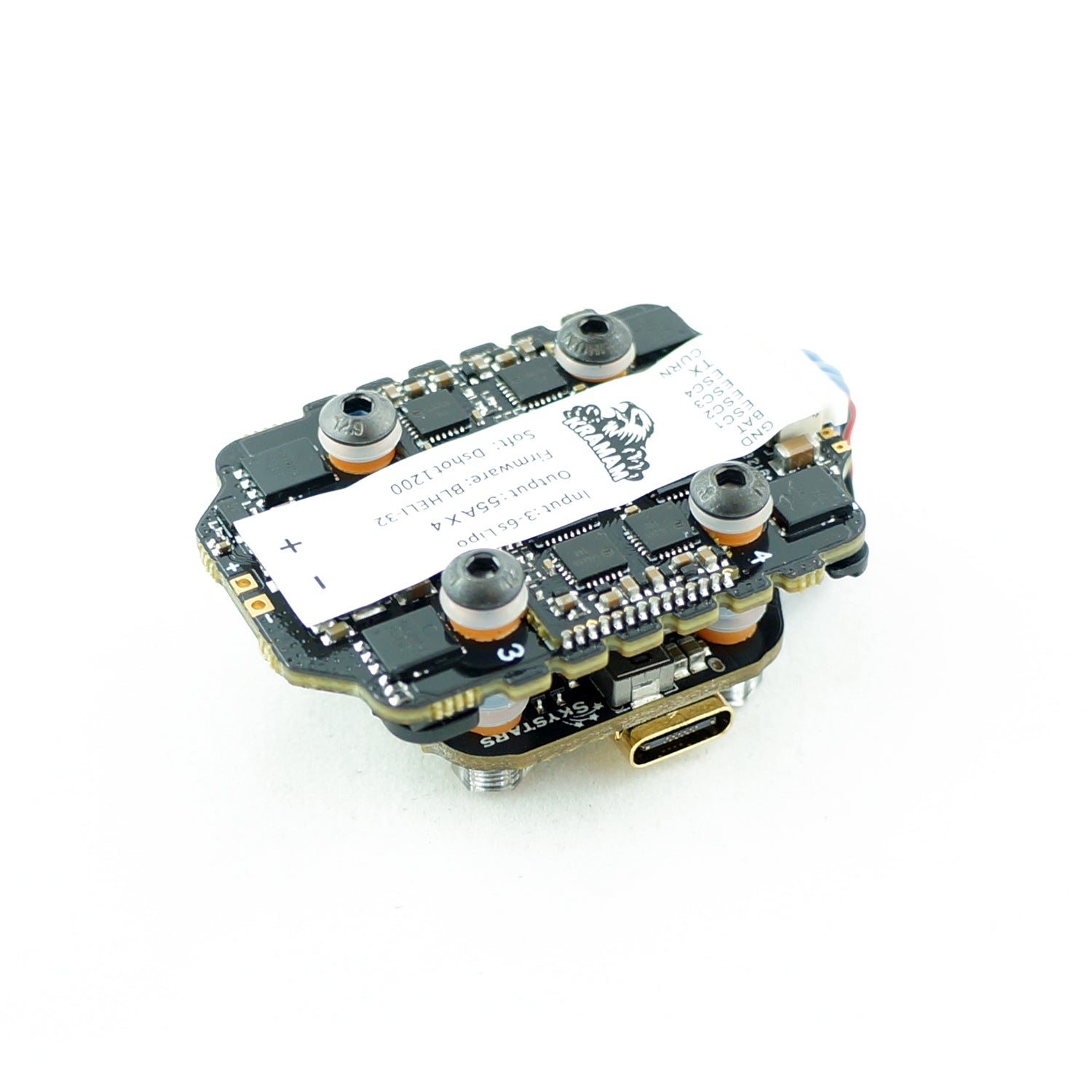

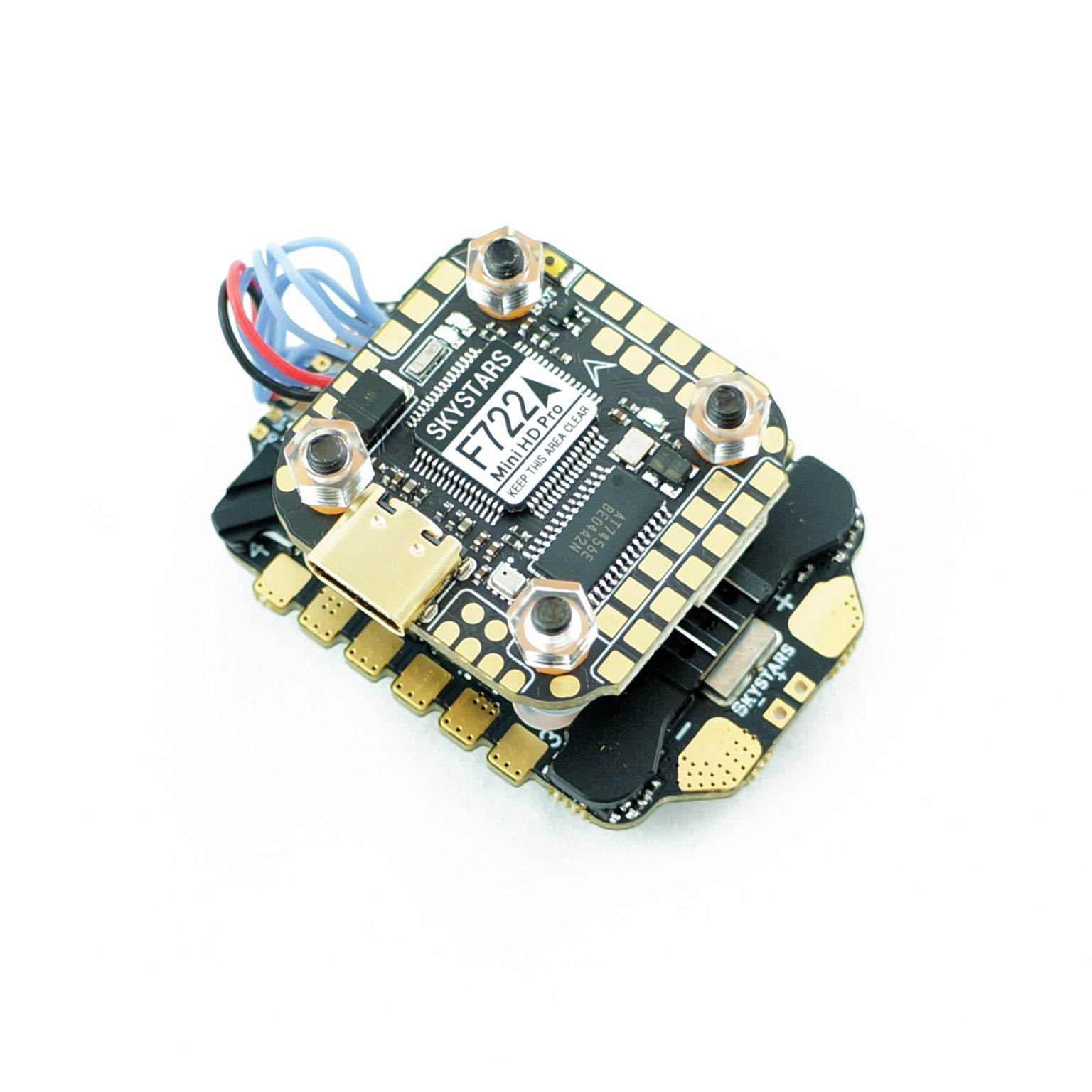

Skystars F722 KM55A Bl_32 Flight Controller Stack
Skystars F722 KM55A Bl_32 Flight Controller Stack
Skystars F722 KM55A Bl_32 Flight Controller Stack
insideFPV

Skystars F722 KM55A Bl_32 Flight Controller Stack

The Skystars F722 KM55A Bl_32 Flight Controller Stack is a powerful and versatile flight controller stack that is perfect for racing and freestyle drones. It features a modern F7 processor, a 55A 4-in-1 ESC, and a built-in OSD. The stack is also compatible with Betaflight and INAV firmware.

In stock
Sale priceRs. 8,674.00

FEATURES

F7 processor for fast and responsive flight

55A 4-in-1 ESC for plenty of power

Built-in OSD for easy flight data monitoring

Betaflight and INAV firmware compatible

Small and lightweight design

Skystars F722 KM55A Bl_32 Flight Controller Stack

  • Skystars F7 Mini + KM55A Mini is a powerful stack for racing and freestyle drones.
  • The flight controller uses a modern F7 processor. It has 5V / 2A and 10V / 2A BEC for powering peripherals.
  • ESCs with modern firmware BlHeli_32 have a current carrying capacity of up to 55A and are one of the few mini ESCs that use large 5x6mm mosfets protected by an aluminum heatsink.
  • Blackbox: 16MB
  • Firmware: SKYSTARS F7HDPro
  • Dimensions: 35x28x7mm
  • Mounting Holes: 20x20mm / M3

OSD

Betaflight OSD & DJI HD OSD (UART6)

UARTS

6 hardware UARTS (UART1,2,3,4,5,6)

Barometer

Yes

Buzzer Pad

Yes

BEC

5V 2A & 10V 2A

Input Voltage

3-6S Lipo
What's Inside the box ?
  • 1x Skystars F722 KM55A Bl_32 Flight Controller Stack

In Applications Like

Racing

Freestyle

Long Range

Cinewhoop

Drones
